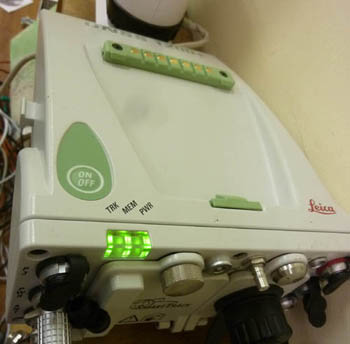

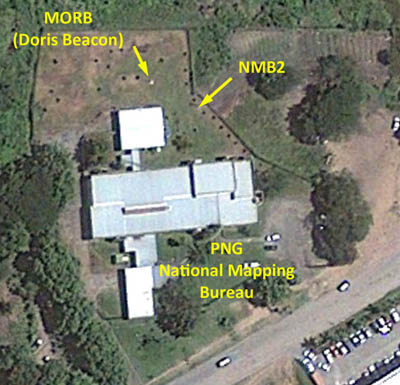

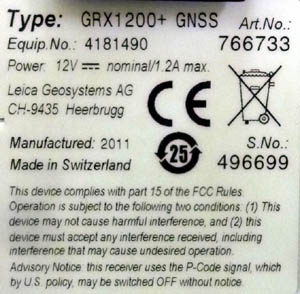

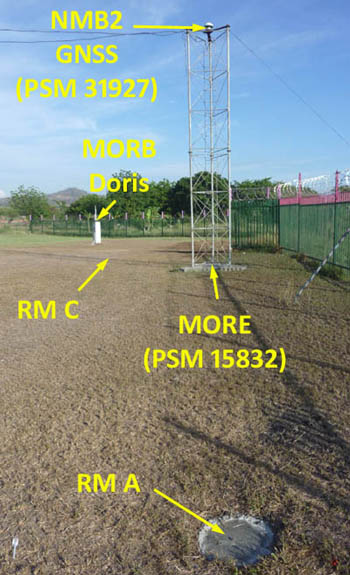

The GPS CORS at the PNG National Mapping Bureau (NMB) was upgraded in October 2011 and is now a station in the Asia Pacific Reference Frame Network (APREF). The new receiver is a Leica GRX1200+GNSS with capability to track all modern GNSS. RINEX data at 30 second epoch can be downloaded from the APREF web-site. CORS Monument Name SITE ID: NMB2 DOMES Number: 51001M003 PNG Number: PSM 31927 CORS Monument Description The CORS monument is the centre of the top face of the brass antenna holder, fixed on top of a 6.4 metre high steel mast. The earlier CORS monument (MORE PSM 15832) is a Brass plaque set in concrete approximately 6.4 m below the new monument. APREF Site Log Site Photographs (19th and 20th October 2011)  NMB2 Location  NMB2 tower and MORB Doris beacon looking South-east  NMB2 tower and MORB Doris beacon looking North  NMB2 Antenna in situ  NMB2 Antenna details  NMB2 GNSS receiver  NMB2 GNSS receiver details |
Maintained by: Richard Stanaway, Quickclose Pty. Ltd.
Last Updated: 2nd December 2011
